Filters

Filters /filters:NAME(ARGS):NAME(ARGS):.../ is a pipeline of image operations that will be sequentially applied to the image. Examples:

/filters:fill(white):format(jpeg)/
/filters:hue(290):saturation(100):fill(yellow):format(jpeg):quality(80)/
/filters:fill(white):watermark(raw.githubusercontent.com/cshum/imagor/master/testdata/gopher-front.png,repeat,bottom,10):format(jpeg)/

Processing Filters

imagor supports the following filters:

background_color(color) sets the background color of a transparent image
- color the color name or hexadecimal rgb expression without the "#" character
blur(sigma) applies gaussian blur to the image
brightness(amount) increases or decreases the image brightness
- amount -100 to 100, the amount in % to increase or decrease the image brightness
contrast(amount) increases or decreases the image contrast
- amount -100 to 100, the amount in % to increase or decrease the image contrast
crop(left,top,width,height) crops the image after resizing
- Absolute pixels: crop(10,20,200,150) - crop 200x150 box starting at (10,20)
- Relative (0.0-1.0): crop(0.1,0.1,0.8,0.8) - crop using percentages
draw_detections() draws color-coded bounding boxes on detected regions. Each class name is automatically assigned a distinct colour via hash-based palette. For use with detection plugins such as imagorface. No-op when no Detector is configured.
pixelate(block_size) applies a pixelate effect to the whole image by downscaling to 1/block_size then upscaling back with nearest-neighbour interpolation
- block_size pixel block size in pixels, defaults to 10
fill(color) fill the missing area or transparent image with the specified color:
- color - color name or hexadecimal rgb expression without the "#" character

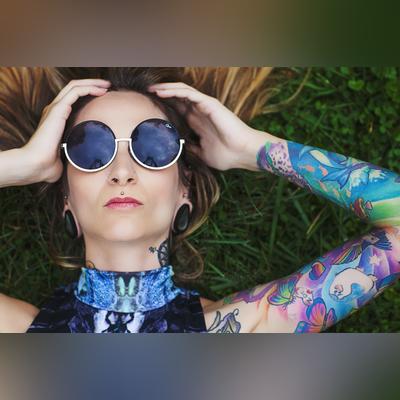

  - If color is "blur" - missing parts are filled with blurred original image

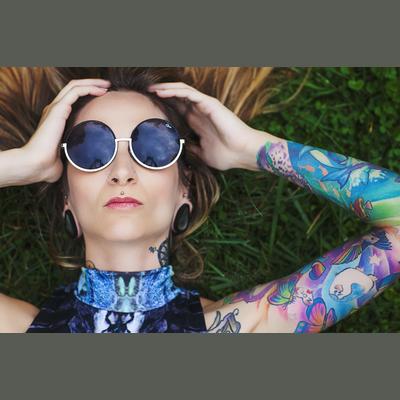

  - If color is "auto" - the top left image pixel will be chosen as the filling color
  - If color is "none" - the filling would become fully transparent
focal(AxB:CxD) or focal(X,Y) adds a focal region or focal point for custom transformations:
- Coordinated by a region of left-top point AxB and right-bottom point CxD, or a point X,Y.
- Also accepts float values between 0 and 1 that represents percentage of image dimensions.
format(format) specifies the output format of the image
- format accepts jpeg, png, gif, webp, avif, jxl, tiff, jp2
grayscale() changes the image to grayscale
hue(angle) increases or decreases the image hue
- angle the angle in degree to increase or decrease the hue rotation

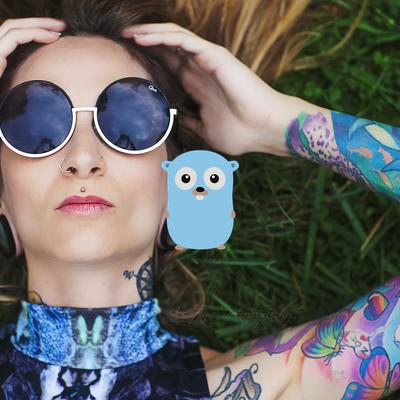

image(imagorpath, x, y[, alpha[, blend_mode]]) composites a processed image onto the current image with full imagor transformation support, enabling recursive image composition:
- imagorpath - an imagor path with transformations e.g. /200x200/filters:grayscale()/photo.jpg
  - The nested path supports all imagor operations: resizing, cropping, filters, etc.
  - Enables recursive nesting - images can load other processed images
  - Use full (or f) in the WxH dimension segment to inherit the parent image's width or height. full means the full parent dimension; full-NNN means the parent dimension minus NNN pixels. Examples:
    - fullxfull/overlay.png (or fxf) — overlay fills the parent canvas exactly
    - fit-in/full-20xfull-20/overlay.png (or fit-in/f-20xf-20) — overlay fits within the parent canvas with a 20px inset on each side
    - fullx200/banner.png — overlay inherits parent width, fixed 200px height
- x - horizontal position (defaults to 0 if not specified):
  - Positive number indicates position from the left, negative from the right
  - Number followed by p e.g. 20p means percentage of image width
  - left or l, right or r, center for alignment, optionally with pixel offset e.g. left-20, r-10
  - repeat to tile horizontally
  - Float between 0-1 represents percentage e.g. 0.5 for center
- y - vertical position (defaults to 0 if not specified):
  - Positive number indicates position from the top, negative from the bottom
  - Number followed by p e.g. 20p means percentage of image height
  - top or t, bottom or b, center for alignment, optionally with pixel offset e.g. top-10, b-20
  - repeat to tile vertically
  - Float between 0-1 represents percentage e.g. 0.5 for center
- alpha - transparency level, 0 (fully opaque) to 100 (fully transparent)
- blend_mode - compositing blend mode, defaults to normal. Supported modes: normal, multiply, screen, overlay, darken, lighten, color-dodge, color-burn, hard-light, soft-light, difference, exclusion, add, mask, mask-out
max_bytes(amount) automatically degrades the quality of the image until the image is under the specified amount of bytes
max_frames(n) limit maximum number of animation frames n to be loaded
no_upscale() prevents the image from being upscaled beyond its original dimensions
orient(angle) rotates the image before resizing and cropping, according to the angle value
- angle accepts 0, 90, 180, 270
page(num) specify page number for PDF, or frame number for animated image, starts from 1
dpi(num) specify the dpi to render at for PDF and SVG
proportion(percentage) scales image to the proportion percentage of the image dimension
quality(amount) changes the overall quality of the image, does nothing for png
- amount 0 to 100, the quality level in %

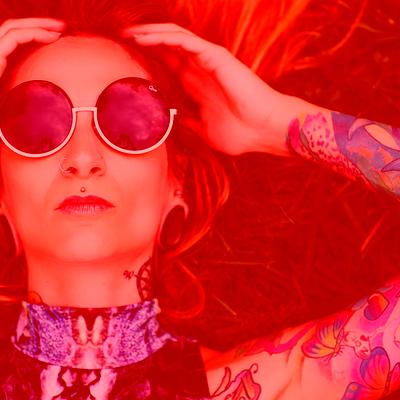

rgb(r,g,b) amount of color in each of the rgb channels in %. Can range from -100 to 100
rotate(angle) rotates the given image according to the angle value
- angle accepts 0, 90, 180, 270
round_corner(rx [, ry [, color]]) adds rounded corners to the image with the specified color as background
- rx, ry amount of pixel to use as radius. ry = rx if ry is not provided
- color the color name or hexadecimal rgb expression without the "#" character
saturation(amount) increases or decreases the image saturation
- amount -100 to 100, the amount in % to increase or decrease the image saturation
redact([mode[, strength]]) obscures all detected regions for privacy/anonymisation (e.g. GDPR face blurring, legal document redaction). Requires a detection plugin such as imagorface. No-op when no Detector is configured or no regions are detected. Skips animated images.
- mode — blur (default), pixelate, or any color name/hex for solid fill (e.g. black, white, ff0000)
- strength — blur sigma (default 15) or pixelate block size in pixels (default 10). Not used for solid color mode.
- Examples: redact(), redact(blur,20), redact(pixelate), redact(pixelate,15), redact(black), redact(white), redact(ff0000)
redact_oval([mode[, strength]]) identical to redact but applies an elliptical mask to each region, producing a rounded/oval redaction shape. This is the most natural shape for face anonymisation as it closely follows the contour of a face. Same arguments and defaults as redact.
- Examples: redact_oval(), redact_oval(blur,20), redact_oval(pixelate), redact_oval(pixelate,15), redact_oval(black), redact_oval(white), redact_oval(ff0000)

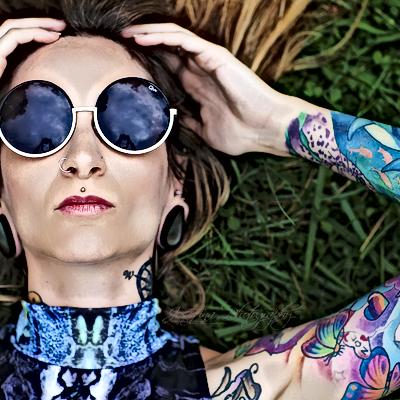

sharpen(sigma) sharpens the image
strip_exif() removes Exif metadata from the resulting image
strip_icc() removes ICC profile information from the resulting image. The image is first converted to sRGB color space to preserve correct colors before the profile is removed.

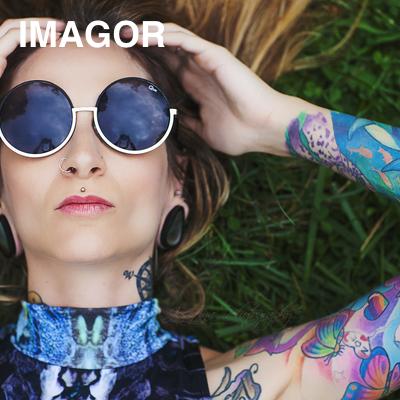

text(text, x, y[, font[, color[, alpha[, blend_mode[, width[, align[, justify[, wrap[, spacing[, dpi]]]]]]]]]]) renders a text overlay onto the image with full multi-line and Pango font support:
- text the text to render. Supports URL query-encoding and b64: prefix for base64url encoding to safely pass arbitrary unicode or multi-word strings.
- font Pango font description with hyphens as space separators, e.g. sans-bold-24 for sans bold 24, monospace-18 for monospace 18. Font size is in points; at the default 72 DPI, 1pt = 1px.
- x horizontal position:
  - Positive number indicates position from the left, negative from the right
  - Number followed by p e.g. 20p means percentage of image width
  - left or l, right or r, center for alignment, optionally with pixel offset e.g. left-20, r-10
  - Float between 0-1 represents percentage e.g. 0.5 for center
- y vertical position:
  - Positive number indicates position from the top, negative from the bottom
  - Number followed by p e.g. 20p means percentage of image height
  - top or t, bottom or b, center for alignment, optionally with pixel offset e.g. top-10, b-20
  - Float between 0-1 represents percentage e.g. 0.5 for center
- color color name or hexadecimal rgb expression without the # character, defaults to black
- alpha transparency, 0 (fully opaque) to 100 (fully transparent), defaults to 0
- blend_mode compositing blend mode, defaults to normal. Supported modes: normal, multiply, screen, overlay, darken, lighten, color-dodge, color-burn, hard-light, soft-light, difference, exclusion, add, mask, mask-out
- width wrap width — text wraps when a line exceeds this width. Supports the same conventions as image dimensions:
  - Plain integer for pixel count, e.g. 300
  - Number followed by p for percentage of canvas width, e.g. 80p
  - Float between 0-1 as fraction of canvas width, e.g. 0.75
  - f or full for full canvas width; f-N / full-N for canvas width minus N pixels
  - 0 or omitted means unconstrained (Pango wraps only on explicit newlines)
- align horizontal alignment of lines within the text box: low (default, left), centre / center, high / right
- justify justify text: true or 1
- wrap line wrapping mode: word (default), char, wordchar, none
- spacing additional line spacing in pixels
- dpi render DPI, defaults to 72 (where 1pt = 1px)
to_colorspace(profile) converts the image to the specified ICC color profile
- profile the target color profile, defaults to srgb if not specified. Common values: srgb, p3, cmyk
upscale() enables upscaling for fit-in and adaptive-fit-in modes

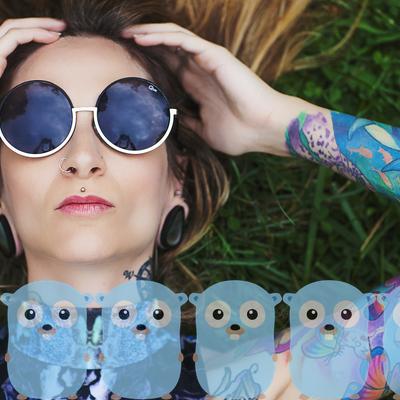

watermark(image, x, y, alpha [, w_ratio [, h_ratio]]) adds a watermark to the image. It can be positioned inside the image with the alpha channel specified and optionally resized based on the image size by specifying the ratio
- image watermark image URI, using the same image loader configured for imagor. Use b64: prefix to encode image URLs with special characters as base64url.
- x horizontal position that the watermark will be in:
  - Positive number indicate position from the left, negative number from the right.
  - Number followed by a p e.g. 20p means calculating the value from the image width as percentage
  - left,right,center positioned left, right or centered respectively
  - repeat the watermark will be repeated horizontally
- y vertical position that the watermark will be in:
  - Positive number indicate position from the top, negative number from the bottom.
  - Number followed by a p e.g. 20p means calculating the value from the image height as percentage
  - top,bottom,center positioned top, bottom or centered respectively
  - repeat the watermark will be repeated vertically
- alpha watermark image transparency, a number between 0 (fully opaque) and 100 (fully transparent).
- w_ratio percentage of the width of the image the watermark should fit-in
- h_ratio percentage of the height of the image the watermark should fit-in

Utility Filters

These filters do not manipulate images but provide useful utilities to the imagor pipeline:

attachment(filename) returns attachment in the Content-Disposition header, and the browser will open a "Save as" dialog with filename. When filename not specified, imagor will get the filename from the image source
expire(timestamp) adds expiration time to the content. timestamp is the unix milliseconds timestamp, e.g. if content is valid for 30s then timestamp would be Date.now() + 30*1000 in JavaScript.
preview() skips the result storage even if result storage is enabled, and opts the request into the in-memory cache when configured. Useful for preview contexts where the same source image is served at multiple transformations.
raw() response with a raw unprocessed and unchecked source image. Image still loads from loader and storage but skips the result storage
